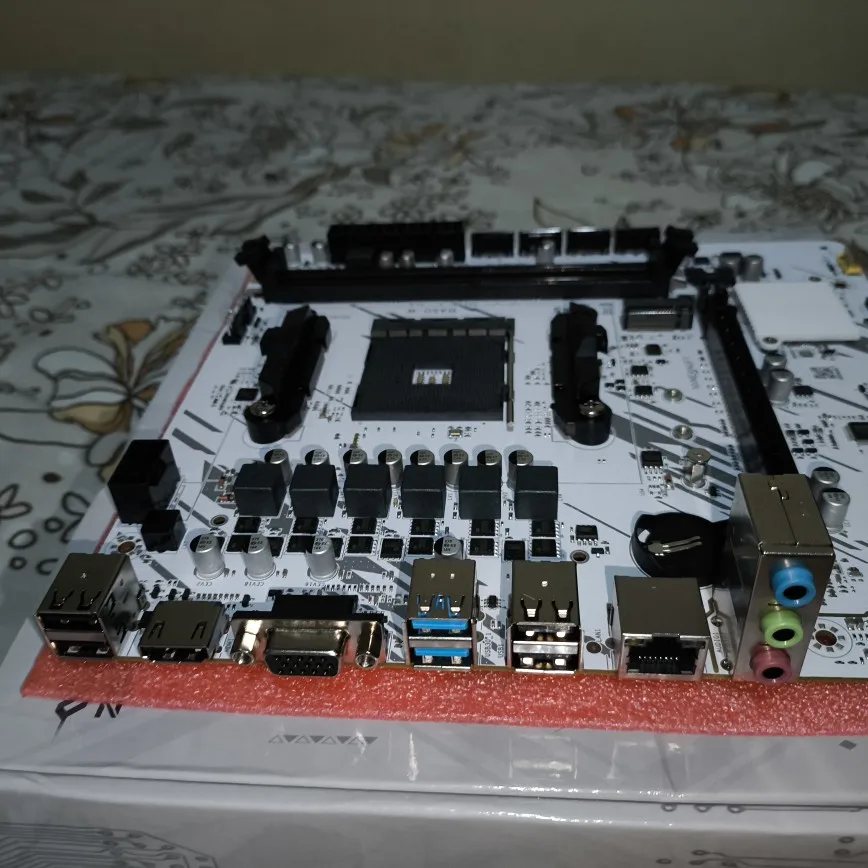

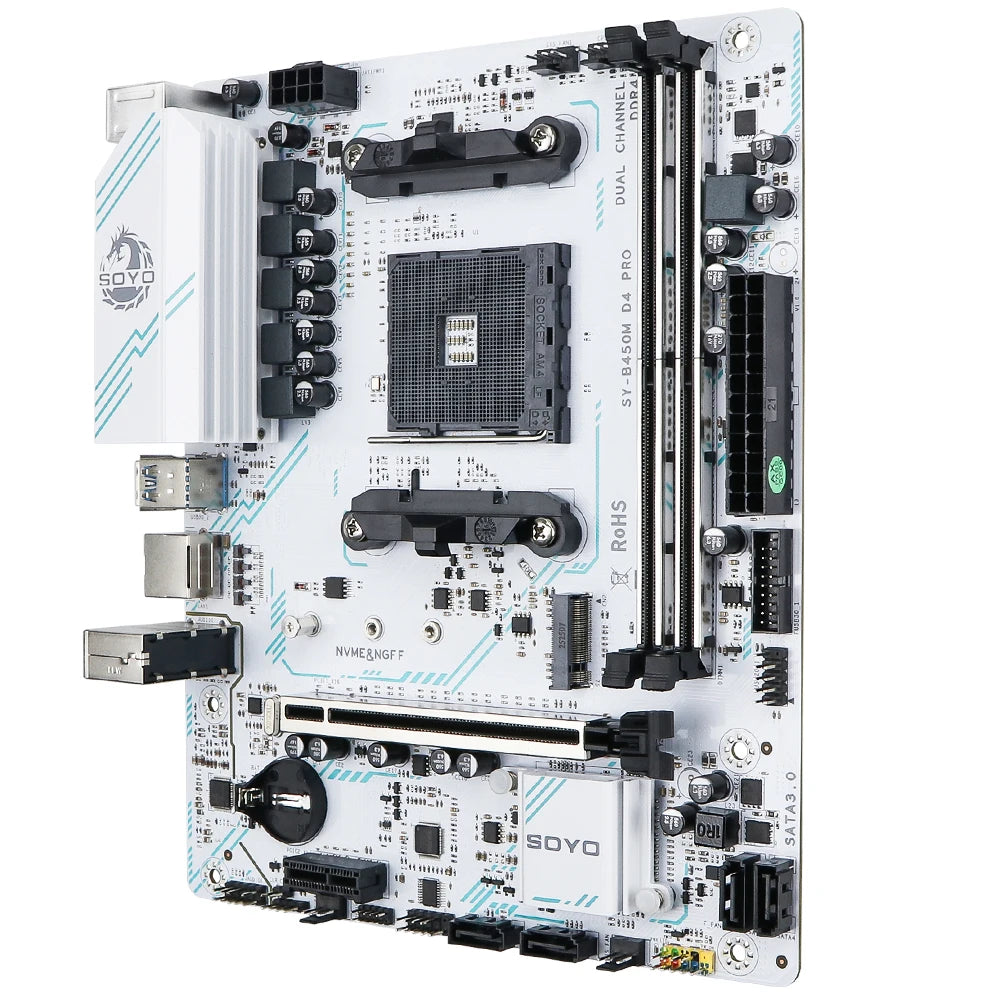

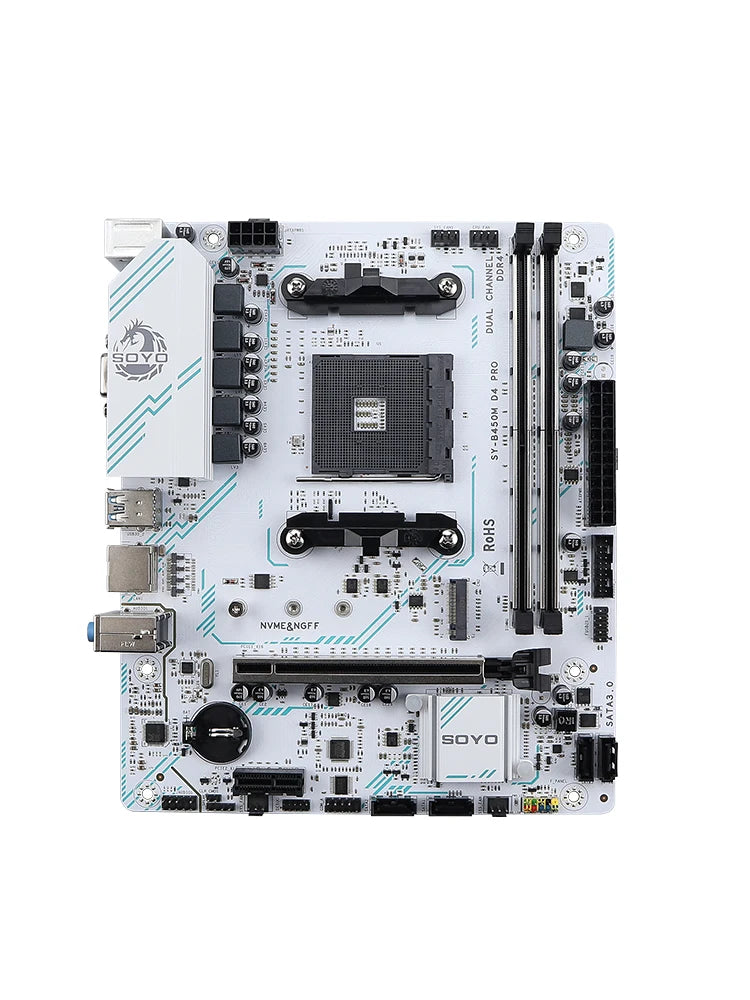

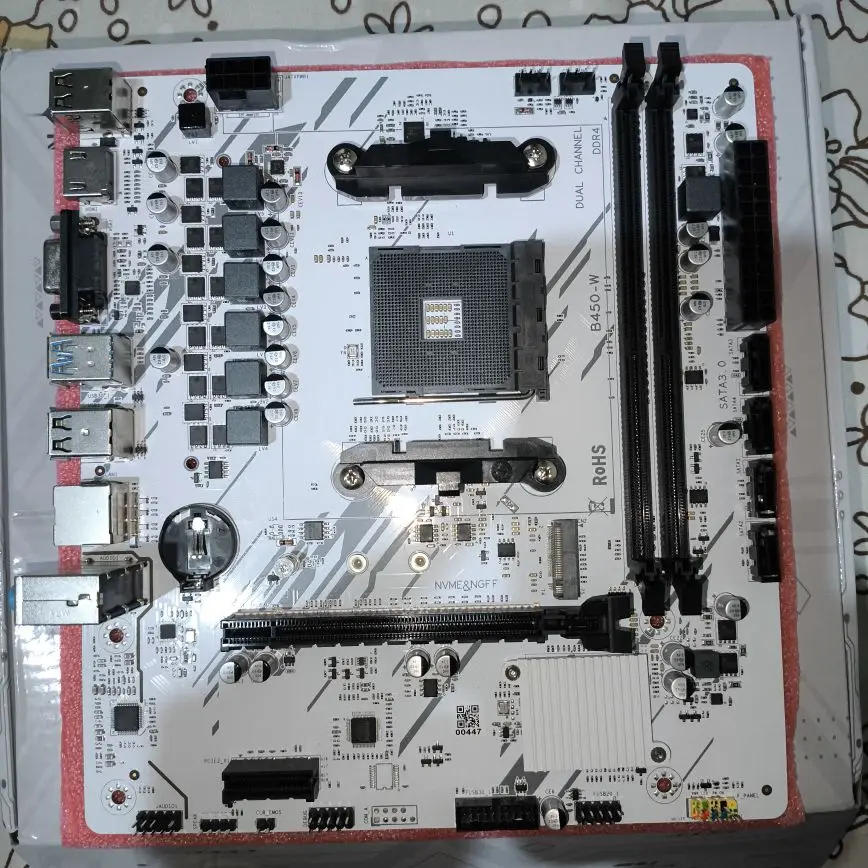

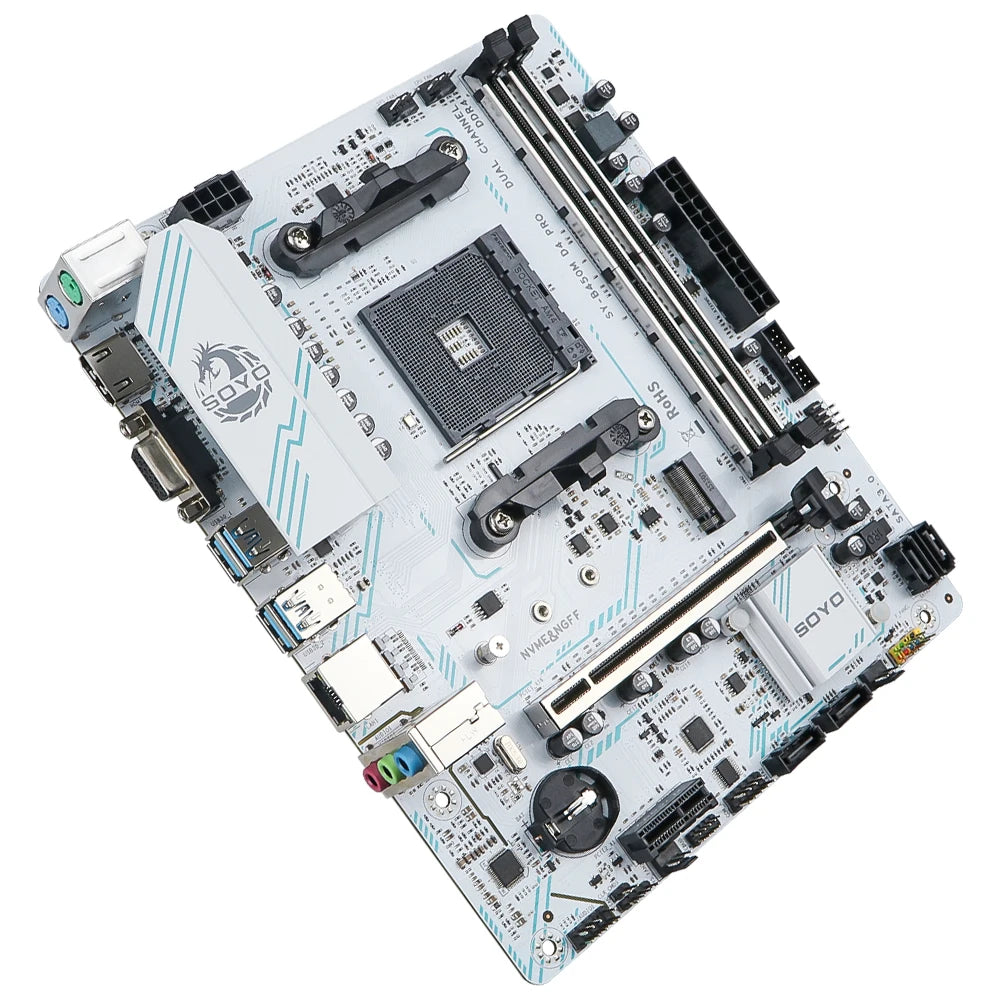

SOYO AMD B450M Game Motherboard – AM4 Socket, Dual-Channel DDR4, M.2 NVMe, Supports Ryzen 5000/4000/3000 Series CPUs

The SOYO B450M Gaming Motherboard offers solid performance and reliability for budget to mid-range builds. Supporting AMD Ryzen 1st through 5th generation processors, this Micro-ATX board features dual-channel DDR4 memory, M.2 NVMe storage, and full compatibility with modern GPUs.

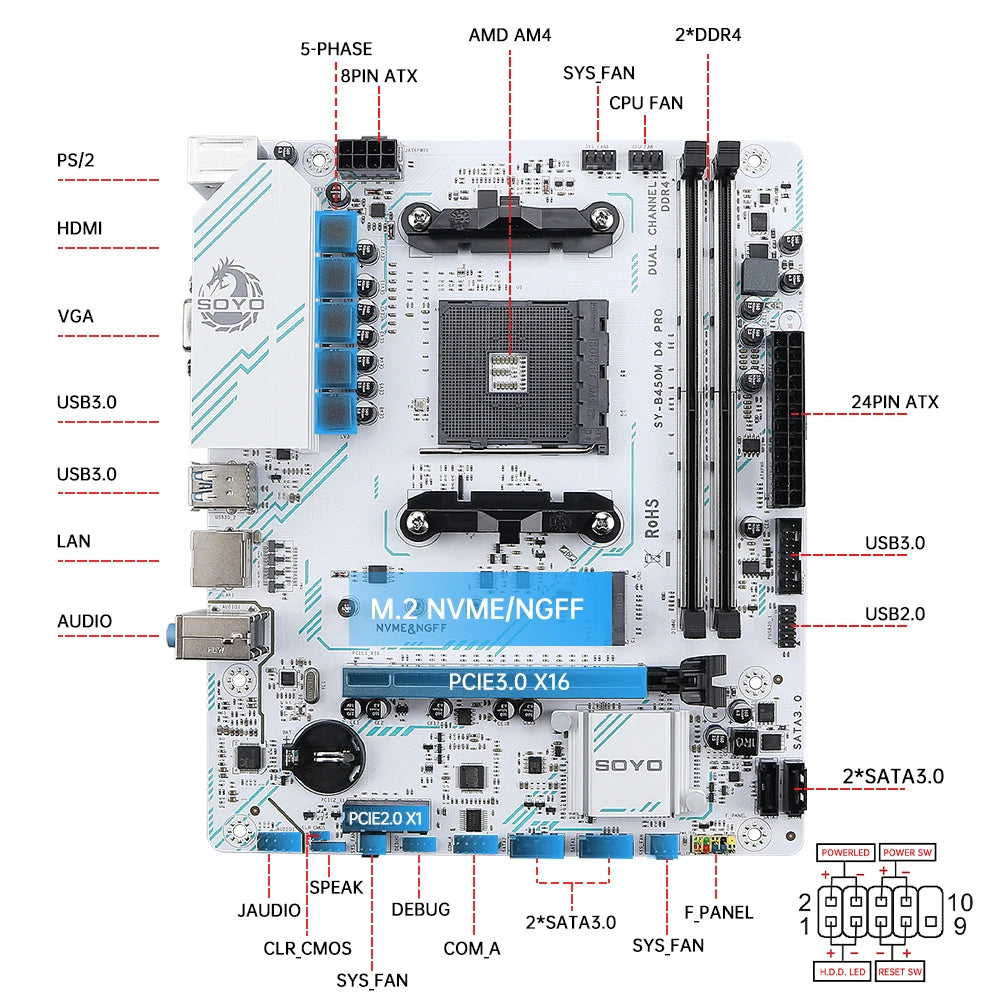

Key Features:
– Socket type – AM4, supports Ryzen 1000/2000/3000/4000/5000 series CPUs (including G-series APUs)
– Memory – 2 DDR4 DIMM slots, dual channel, maximum 64GB (32GB×2), supports 2133–3600MHz (OC) with XMP support
– Storage – 1 M.2 NVMe/SATA slot (supports 2242/2260/2280 drives) and 4 SATA 3.0 ports
– Expansion – 1× PCIe 3.0 x16 slot for GPUs, 1× PCIe x1 slot

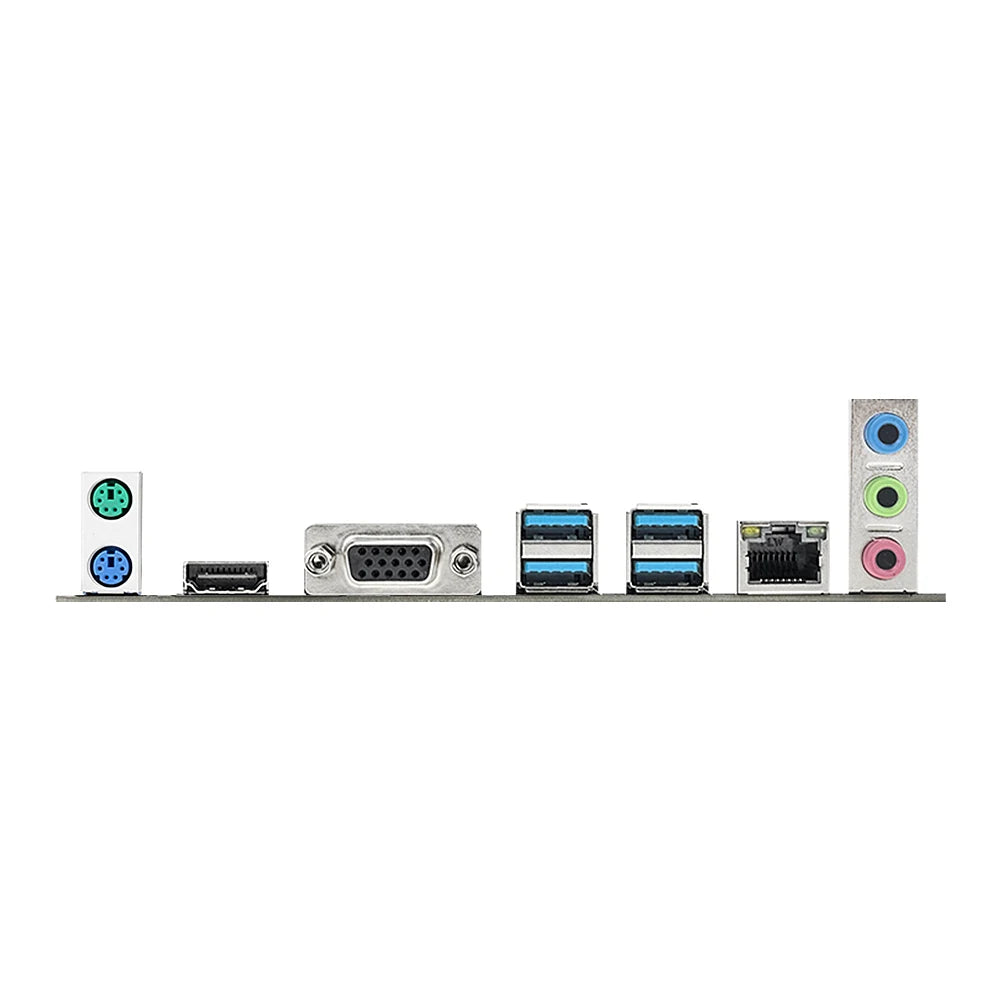

– Display outputs – HDMI 2.0 and VGA for integrated graphics use
– Audio – Realtek 7.1 HD audio with Line Out, Mic In, Line In, and JAUDIO1 header
– Networking – Realtek Gigabit LAN (1× RJ45)
– USB – Rear I/O: 4× USB 3.0 ports; Front panel: headers for 2× USB 2.0 and 2× USB 3.0
– Cooling – 1× 4-pin CPU_FAN, 2× 3-pin SYS_FAN, 1× 4-pin SYS_FAN for efficient airflow
– Power connectors – 24-pin ATX main and 8-pin CPU power socket
– Form factor – Micro-ATX, compact size 180×216mm

Additional Notes:
– Supports RAID configurations for enhanced data security and performance
– Ideal for gaming, office PCs, content creation, and home builds
– Designed for compatibility with a wide range of DDR4 memory and SSDs

Ideal For: Entry-level to mid-range gaming – Office and productivity builds – Reliable budget setups
